NR500 Industrial 4G Cellular Router

particle One particle Two particle Three particle Four particle Five

NR500

NR500 NC is designed for providing trustable and reliable connectivity between applications things and the remote centers.

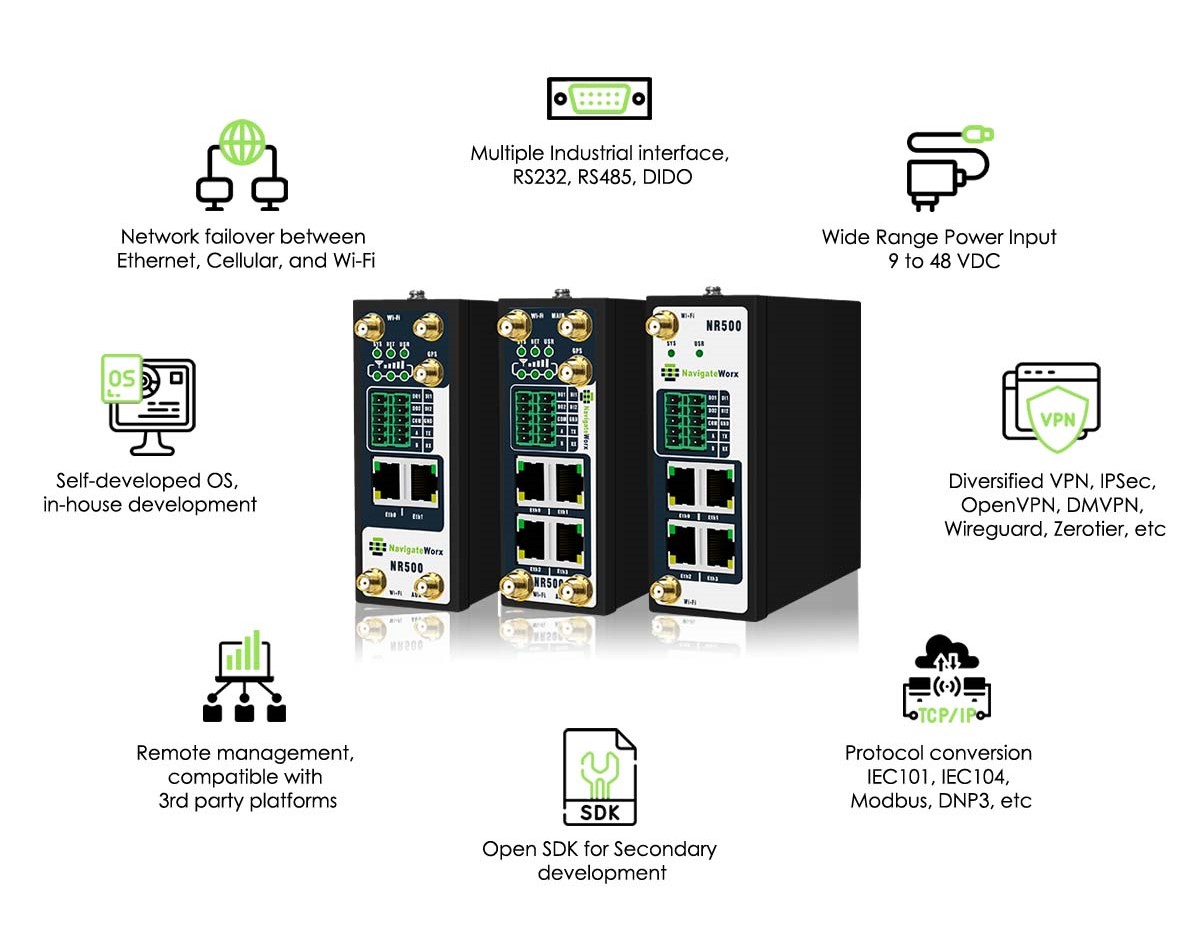

Overview

Industrial Internet access
• Wired Ethernet connection support DHCP, Static IP and PPPoE
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance

Designed for industrial usage
• Power Input Range 9 to 48 VDC
• Industrial designed for harsh environment
• Compact metal casing for easy mounting

Secure and reliable remote connection
• Connection manager ensure seamless communication
• Support Multiple Encryption tunnels for data encryption
• Firewall prevents unsafe and unauthorized access

Easy to use and easy maintenance
• User-friendly web interface for human interaction
• Easy configuration for deployment
• Support Central Device Management Platform

Specification

ETHERNET
Number of Ports 1 x WAN + 3 x LAN or 4 x LAN
Port Type Auto 10/100 Mbps auto MDI/MDIX
Magnet Isolation Protection 1.5 KV

Wi-Fi (Optional)
Wireless Mode IEEE 802.11b/g/n Access Point (AP) Client
Wireless Speed 2*2 MIMO 300 Mbps
Wireless Security WPA WPA2 WEP 64/128 AES TKIP
Frequency Bands 2.412 - 2.484 GHz (2.4 GHz ISM band)
Antennas 2 x RP-SMA for Wi-Fi antenna connectors

SERIAL
Number of Ports 1 x RS-232 (3 PIN) + 1 x RS-485
Connector Terminal block
ESD Protection ± 15 KV
Band Rate 300bps to 115200bps

DIGITAL INPUT & OUTPUT
Type 2 x DI + 2 x DO
Connector Terminal block
Isolation 3KVDC or 2KVrms
Absolute maximum VDC 36VDC
Absolute maximum ADC 100 mA


NETWORK
Routing Static routing RIP OSPF BGP
Network Protocols TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP VRRP PPP PPPoE DHCP
Connection Manager Ping Detection Timer Reboot ICMP for li
DHCP Static and dynamic IP allocation
DDNS Supported some service providers others can be configured manually
Network Backup Wired and Wi-Fi WAN options each of which can be used as backup
Firewall Flexible access control of TCP UDP ICMP packets MAC address filter

MONITORING & MANAGEMENT
Web GUI HTTP/HTTPS firmware upgrade
Command Line Interface SSHv2 and TELNET
3rd party platform Pending

POWER
Connector 3-pin 3.5 mm female socket with lock
Input Voltage Range 9 to 48 VDC
Power Consumption Idle: 100 mA@12 V
Data li

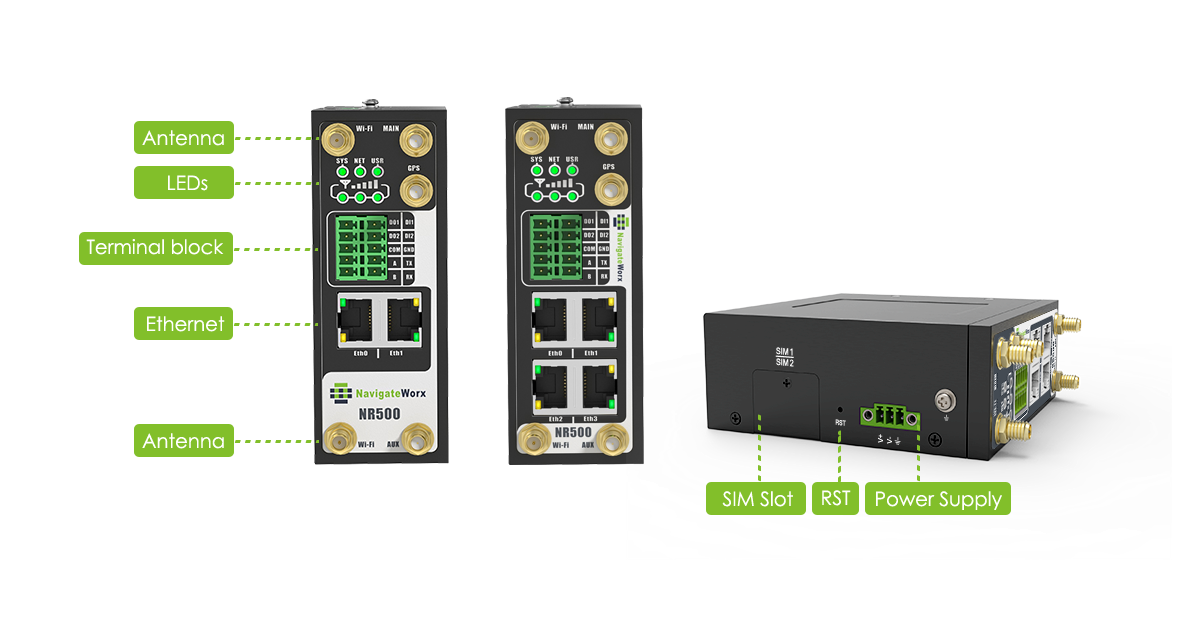

HARDWARE SPECIFICATION
Watchdog Built-in watchdog
LEDs SYS USR
Reset Button Reset/restore to factory default button
Ingress Protection IP30
Housing & Weight me
Dimensions 106mm x 106mm x 40mm
Installations DIN-rail mounting
Operating Temperature -40 °C to 85 °C
Operating Humidity 5% to 95% non-condensing

APPROVAL
EMI EN 55032:2012 Class B
EMS IEC 61000-4-2 ESD:
IEC 61000-4-3 RS:
IEC 61000-4-4 EFT:
IEC 61000-4-5 Surge:
IEC 61000-4-6 CS:
Level 4
Level 3
Level 3
Level 3
Level 3

Vibration EN50155

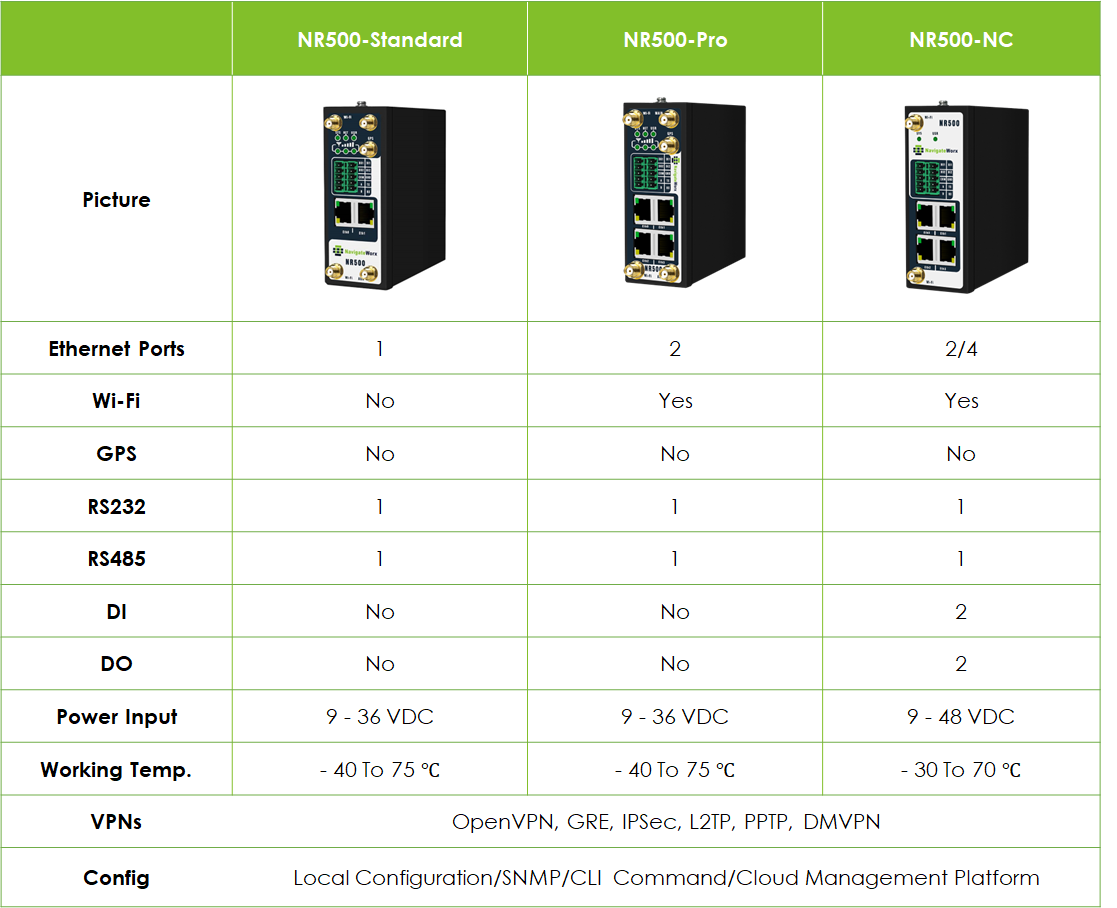

Model

 Model  Part NumberDesc
  NR500-SNC   A502033 No Cellular Module 2 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC
 A512033 No Cellular Module 2 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC
2.4GHz Wi-Fi
  NR500-PNC  A504033 No Cellular Module 4 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC
 A514033 No Cellular Module 4 x Eth 1 x RS232 (3 PIN) 1 x RS485 2 x DI 2 x DO 9 - 48VDC 2.4GHz Wi-Fi
