NR300

Navigateworx NR300 industrial cellular VPN router is dedicated for applications and customers which require Very Cost Effective and High Efficient solution.

Self-developed OS
Self-developed OS
Strong R&D Team
Strong R&D Team
Professional Support
Professional Support
Industrial Design
Industrial Design
Security Connection
Security Connection
Flexible Customize
Flexible Customize

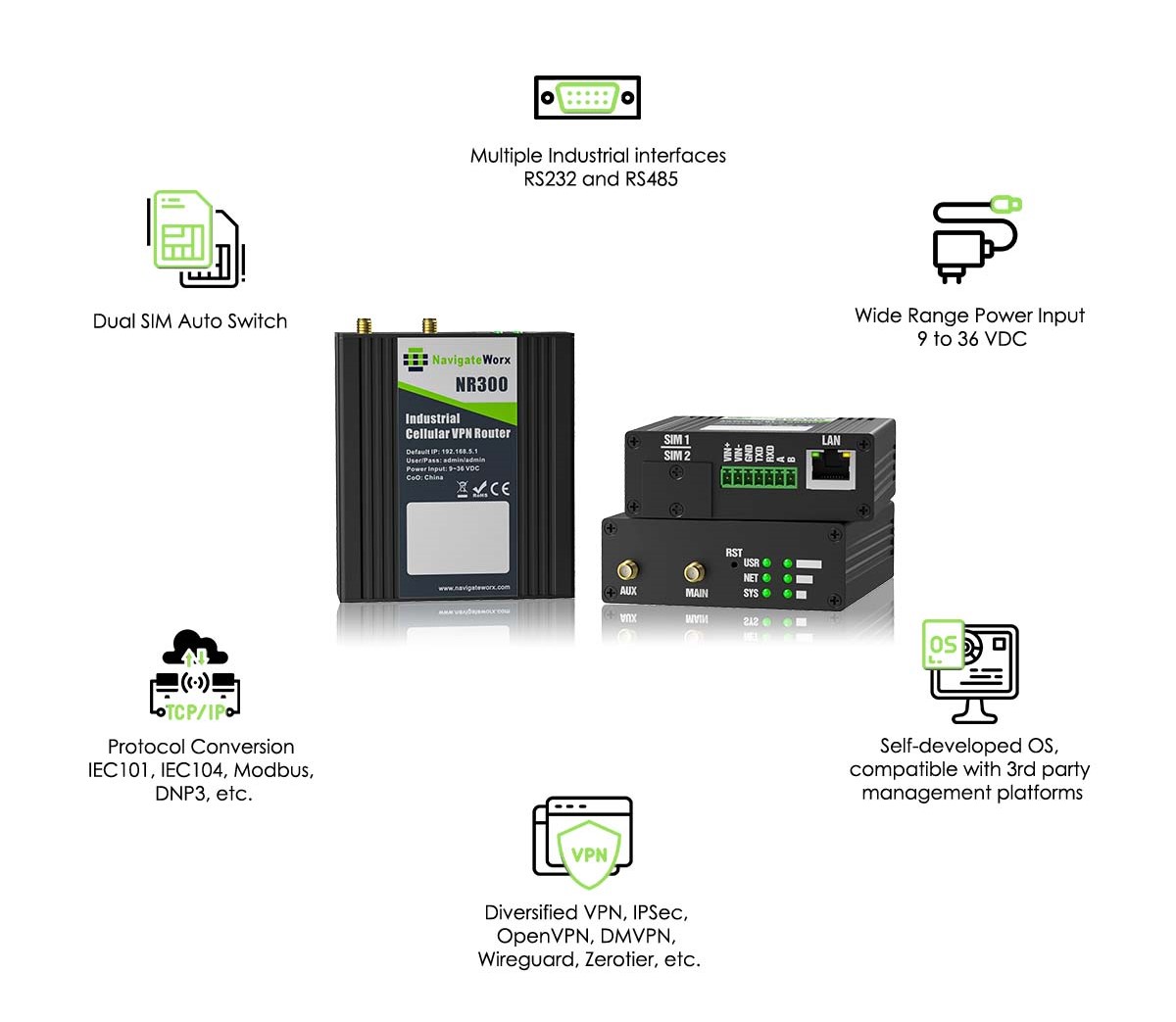

Overview

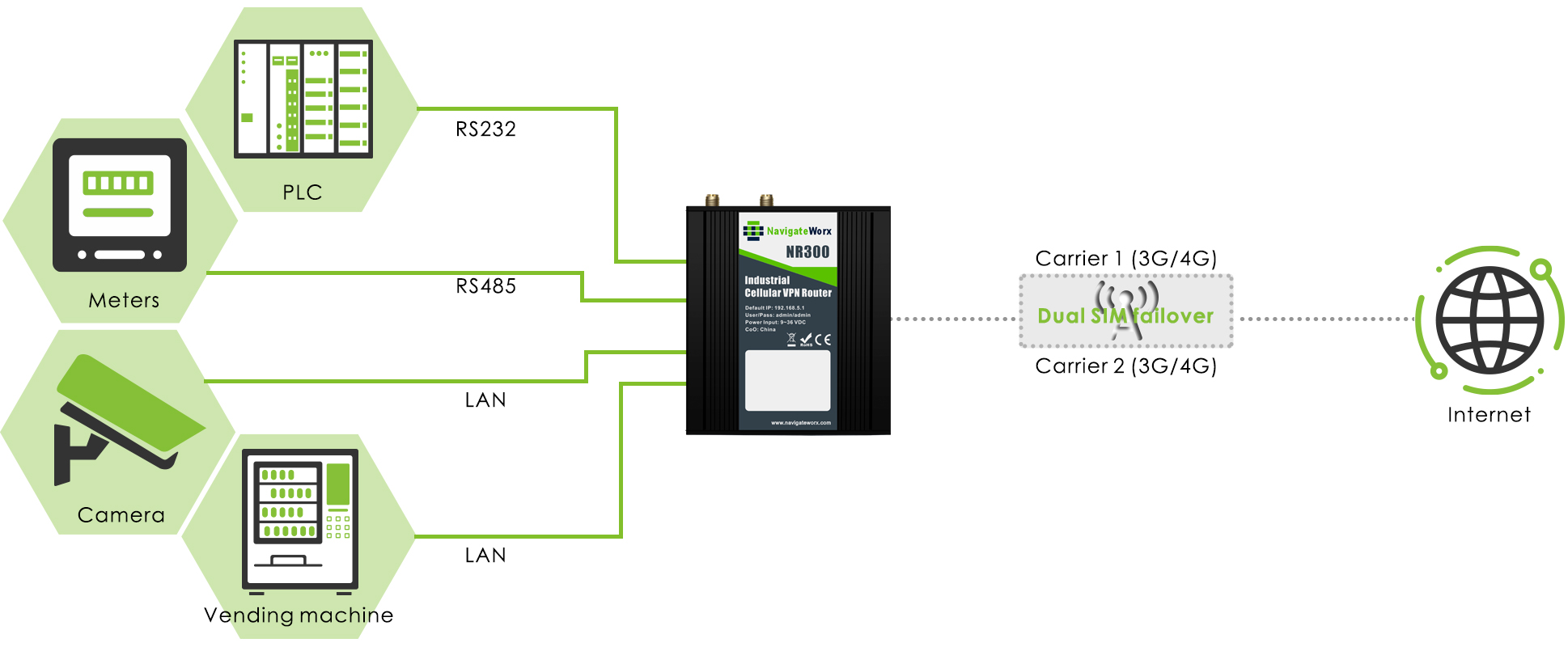

Industrial Internet access
• Wireless Mobile Broadband 2G / 3G / 4G Connection
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance


Designed for industrial usage

• Power Input Range 9 to 36 VDC

• Industrial designed for harsh environment

• Aluminum casing

Secure and reliable remote connection

• Connection manager ensure seamless communication

• Support Multiple Encryption tunnels for data encryption

• Firewall prevents unsafe and unauthorized access

Easy to use and easy maintenance

• User-friendly web interface for human interaction

• Easy configuration for deployment

• Support Central Device Management Platform


Specification

CELLULAR
Frequency BandsLTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B28A
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

More Bands Demands please contact with us
SIM 2 x SIM slots 1.8V / 3V
SIM Failover Auto-switch cases: weak signal data limited SMS limited no network network denied data connection fail
Auto APN List Operator APN list
Mobile Quota Control Set up customized data limits for both SIM cards
Number of Antennas 2 (MAIN + AUX)
Connector SMA female

ETHERNET
Number of Ports 1 x LAN
Port Type Auto 10/100 Mbps auto MDI/MDIX
Magnet Isolation Protection 1.5 KV

SERIAL
Number of Ports 1 x RS-232 (3 PIN) + 1 x RS-485
Connector Terminal block
ESD Protection ± 15 KV
Band Rate 300bps to 115200bps


°
NETWORK
Routing Static routing
Dynamic Routing (Optional) RIPv1/v2 OSPF BGP
Network Protocols TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP PPP PPPoE DHCP
Connection Manager Ping Detection Timer Reboot ICMP for li
DHCP Static and dynamic IP allocation
DDNS Supported some service providers others can be configured manually
Firewall Flexible access control of TCP UDP ICMP packets MAC address filter
SMS
SMS Configuration SMS Gateway SMS Notification


VPN
OpenVPN
OpenVPN client supports up to 5 x OpenVPN tunnels

GRE
la

IPsec (Optional)
IKEv1 IKEv2 supports up to 5 x IPsec VPN tunnels

DMVPN (Optional)
Dynamic Multipoint Virtual Private Networking DMVPN

P PTP/L2TP (Optional)
PPTP or Point to Point Tunneling Protocol and L2TP or la


MONITORING & MANAGEMENT
Web GUI HTTP/HTTPS firmware upgrade
Command Line Interface SSHv2 and TELNET
Management platform Central Management Platform

POWER
Connector 7-pin 3.5 mm female socket
Input Voltage Range 9 to 36 VDC
Power Consumption Idle: 100 mA@12 V
Data li

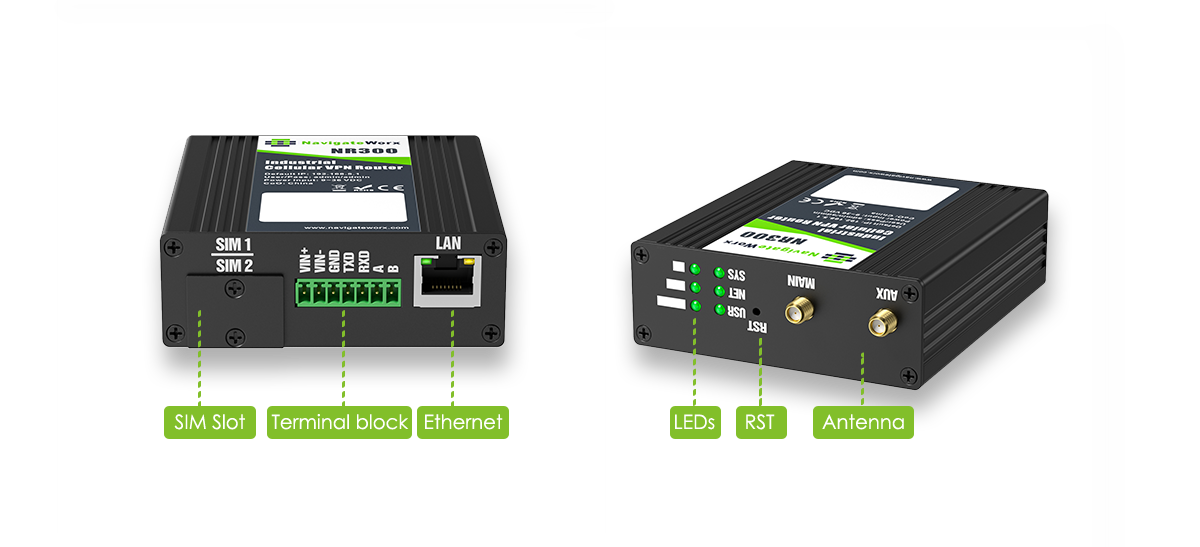

HARDWARE SPECIFICATION
Watchdog Built-in watchdog
LEDs SYS NET USR RSSI x 3
Reset Button Reset/restore to factory default button
Ingress Protection IP30
Housing & Weight
Dimensions 82.8mm x 90mm x 28.8mm
Installations DIN-rail mounting
Operating Temperature -40 °C to 85 °
Operating Humidity 5% to 95% non-condensing

APPROVAL
EMI EN 55032:2012 Class B
EMS IEC 61000-4-2 ESD:
IEC 61000-4-3 RS:
IEC 61000-4-4 EFT:
IEC 61000-4-5 Surge:
IEC 61000-4-6 CS:		 Level 4
Level 3
Level 3
Level 3
Level 3
Vibration EN50155



Model

 Model Part Number Desc
 NR300-4G   A301430 4G LTE/3G/GPRS Dual SIMs 1 x Eth 1 x RS232 (3 PIN) 1 x RS485  9 - 36VDC
