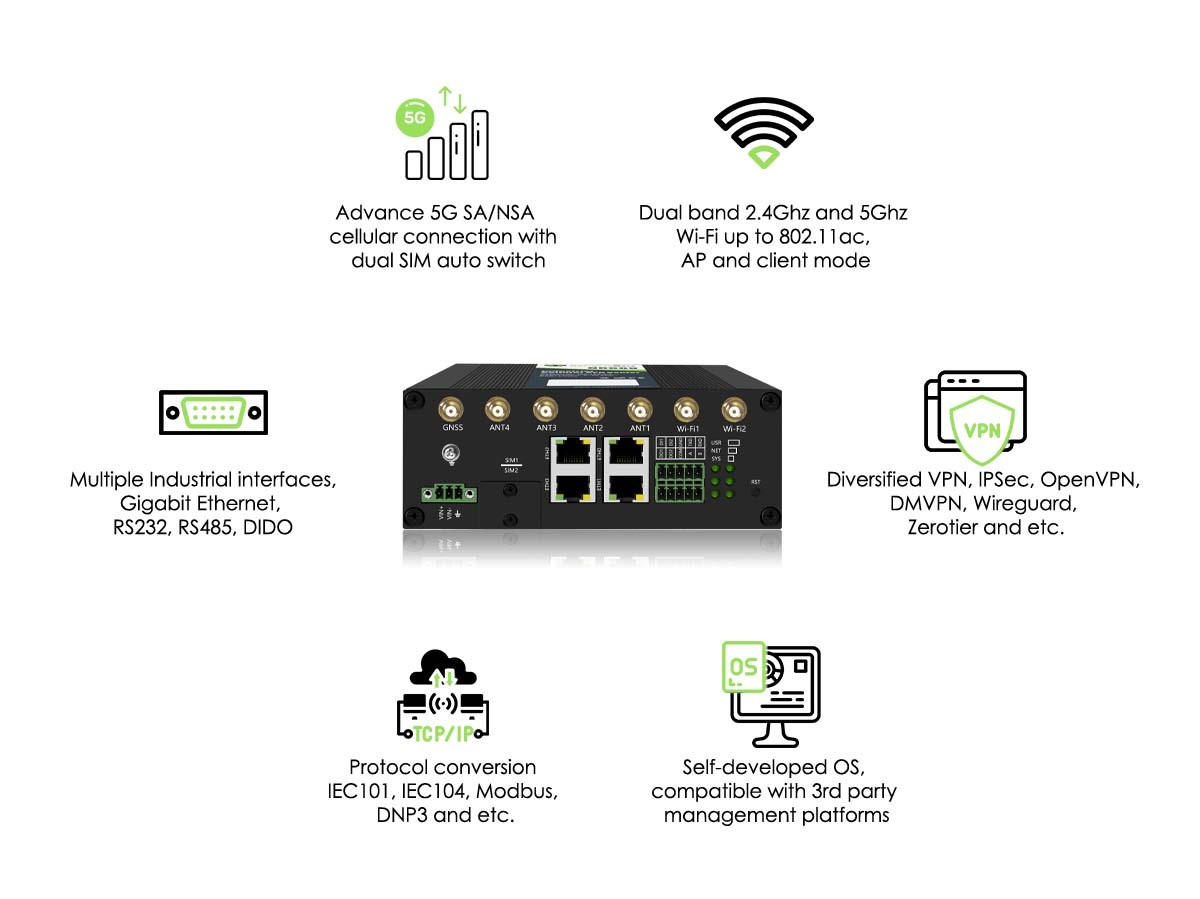

Industrial Internet access • Wireless Mobile Broadband 5G/4G/3G Connection • Connection manager ensure seamless communication • Dual band 2.4GHz and 5.8GHz Wi-Fi access
Designed for industrial usage • Power Input Range 9 to 48 VDC • Industrial design for harsh environment • Aluminum enclosure and wall mounting installation
Easy to use and easy maintenance • User friendly web interface for user interaction • Support Central Management Platform
Specification
CELLULAR
Frequency Bands
5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/ 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD: B34/B38/B39/B40/B41/B42/B43 WCDMA: B1/B2/B4/B5/B8/B19
More Bands Demands please contact with us
SIM
2 x SIM slots 1.8V / 3V
SIM Failover
Auto-switch cases: weak signal data limited SMS limited no network network denied data connection fail
Antennas
4 external antennas SMA
ETHERNET
Number of Ports
1 x WAN + 3 x LAN Auto 10/100/1000 Mbps
Magnet Isolation Protection
1.5 KV
DUAL BAND Wi-Fi
Wireless Mode
802.11a/b/g/n/ac 2*2 MIMO supports AP and Client modes
Wireless Speed
5.8G: Up to 867Mbps
2.4G: Up to 300Mbps
Wireless Security
WPA WPA2 WEP CCMP TKIP
Frequency Bands
5.15 – 5.825 GHz (5 GHz ISM band)
2.412 - 2.484 GHz (2.4 GHz ISM band)
Antennas
2 x RP-SMA
GNSS/GPS
Features
Gen9C Lite of Qualcomm (GPS GLONASS BeiDou Galileo)
Protocol
NMEA-0183
Antennas
1 x SMA female with 50 ohms impedance
SERIAL
Number of Ports
1 x RS-232 (3 PIN) + 1 x RS-485
Connector
Terminal block
ESD Protection
± 15 KV
Band Rate
300bps to 115200bps
DIGITAL INPUT & OUTPUT
Type
2 x DI + 2 x DO
Connector
Terminal block
Isolation
3KVDC or 2KVrms
Absolute maximum VDC
36VDC
Absolute maximum ADC
100 mA
NETWORK
Routing
Static routing
Network Protocols
TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP PPP PPPoE DHCP IP Passthrough VRRP
Connection Manager
Ping Detection Timer Reboot ICMP for li
Firewall
Flexible access control of TCP UDP ICMP packets MAC address filter
DDNS
Supported some service providers others can be configured manually
SMS
SMS Configuration SMS Gateway SMS Notification
VPN
OpenVPN
OpenVPN server/client mode client mode supports up to 5 x OpenVPN tunnels
GRE
la
IPsec
IKEv1 IKEv2 supports up to 5 x IPsec VPN tunnels
MONITORING & MANAGEMENT
Web GUI
HTTP/HTTPS firmware upgrade
Command Line Interface
SSHv2 and TELNET
Management platform
Central Management Platform
POWER
Connector
3-pin 3.5 mm female socket
Input Voltage Range
9 to 48 VDC
Power Consumption
Idle: 300 mA@12 V
Data li

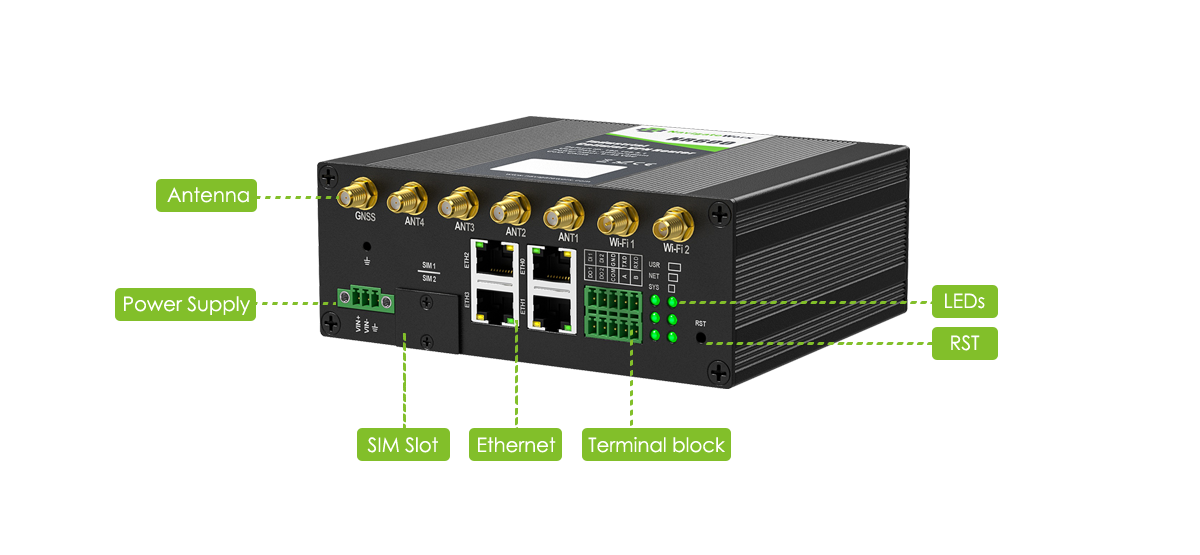

HARDWARE SPECIFICATION
Watchdog
Built-in watchdog
LEDs
SYS NET USR RSSI x 3
Reset Button
Reset/restore to factory default button
Ingress Protection
IP30
Housing & Weight
Aluminum 600g
Dimensions
145mm x 122mm x 54mm
Installations
DIN-rail mounting
Operating Temperature
-30 °C to 70 °C
Extended Temperature
-40 °C to 85 °C
Operating Humidity
5% to 95% non-condensing
APP CENTER
APPs
VPN: L2TP PPTP DMVPN Network: Dynamic Routing (RIPv1/v2 OSPF BGP) Email Notification Enforce Modem PPP QoS Management: AT over IP AT over COM AT over Telnet SNMPv1/v2/v3/ TR069 DMPC Protocol Converter: Modbus Master Modbus Slave Modbus ID Mapping Modbus Gateway
IEC101-104 DLMS to IEC104 Modbus to DNP3 More Apps Demands please contact with us
